Form source (Pascal)
Form source (DFM)
Project source
Form source (Pascal)
Form source (DFM)
| Project source: FileContentsTest2.dpr |
program FileContentsTest2;
uses
Forms,
fmFileContentsTest2 in 'fmFileContentsTest2.pas' {Form1};
{$R *.RES}
begin
Application.Initialize;
Application.CreateForm(TForm1, Form1);
Application.Run;
end.
Back to top
|
| Form source: fmFileContentsTest2.pas |
unit fmFileContentsTest2;
{ UnitOOPS OLE Drag and Drop Components - Example
for dropping multiple new files in Explorer or the desktop based on
in-memory content. Multiple-file version of FileContentsTest.dpr.
Last modified: 03/23/2001}
interface
uses
Windows, Messages, SysUtils, Classes, Graphics, Controls, Forms, Dialogs,
uoole, ComCtrls, StdCtrls, ExtCtrls;
type
TForm1 = class(TForm)
GroupBox1: TGroupBox;
Panel1: TPanel;
Label1: TLabel;
Edit1: TEdit;
UpDown1: TUpDown;
GroupBox2: TGroupBox;
ListView1: TListView;
UOTextSource1: TUOTextSource;
UOTextTarget1: TUOTextTarget;
procedure Panel1MouseDown(Sender: TObject; Button: TMouseButton;
Shift: TShiftState; X, Y: Integer);
procedure UOTextSource1RenderCustomFormat(Sender: TObject;
const formatName: String; var formatContent: String);
procedure UOTextTarget1Drop(Sender: TObject; Acceptor: TWinControl;
const dropText: String; X, Y: Integer);
procedure FormCreate(Sender: TObject);
private
{ Private declarations }
public
{ Public declarations }
end;
var
Form1: TForm1;
implementation
uses
uoUtil, ShlObj, ActiveX;
{$R *.DFM}
function GetContentsForFileIndex(index: integer): string;
// Given a 1-based index, return something to put in the file. We do it here
// so we can call it to get its length at a different time. In a practical
// application, this would be the binary contents of a file, supplied on a
// string.
// Returns '1Contents for file 1' when index = 1
// '22Contents for file 2' when index = 2, etc.
// Testing purposes - if index is <= 0, return blank.
var
fmtString: string;
begin
// Uncomment to demonstrate the case where blank contents cause no file to be created
// In this case File1.txt will never be created. See UOTextSource1RenderCustomFormat below
// for more information.
//if (index = 1) then
//begin
// Result := '';
// Exit;
//end;
fmtString := StringOfChar(IntToStr(index)[1], index);
Result := Format(fmtString + 'Contents for file %d', [index]);
end;
function uoFileGroupDescriptorFromFileListEx(const rootDir: string; fileList: TStringList; sizes: array of integer): string;
// Build a FileGroupDescriptor structure in a string. Useful for descriptive info
// about files being dragged. Entirely optional. If rootDir is '', the list is assumed
// to be fully qualified. If a file doesn't exist, we look first in the Objects[] array for
// the attribute. If it's not there, we give it the faArchive attribute.
var
aFd: TFileDescriptor;
aFileName: string;
aString: string;
j: integer;
useSlash: boolean;
aUINT: UINT;
begin
result := ''; // Fall-through value
useSlash := (rootDir <> '') and (rootDir[length(rootDir)] <> '\');
with fileList do
begin
// Put the file count at the head of the FILEGROUPDESCRIPTOR structure.
aUint := Count;
result := uoEncodeDWORDToString(aUINT);
// The remainder of the structure is an array of FILEDESCRIPTOR structures.
for j := 1 to Count do // Iterate
begin
if useSlash then
aFileName := rootDir + '\' + Strings[j-1]
else
aFileName := rootDir + Strings[j-1];
// Build a file descriptor for this file.
// Bare-bones - pass only the file attributes. We could also pass
// file creation/mod dates, file sizes, etc, etc.
FillChar(aFd, sizeOf(aFd), 0);
with aFd do
begin
dwFlags := FD_ATTRIBUTES;
// Do we have file sizes?
if (high(sizes) >= Count-1) then
dwFlags := dwFlags or FD_FILESIZE;
// Existing file - get the attributes
if FileExists(aFileName) then
dwFileAttributes := FileGetAttr(aFileName)
else
begin
// Non-existent file - did the user pass us attributes in Objects[]?
dwFileAttributes := DWORD(Objects[j-1]);
// No attributes passed - assume this is a regular file
if (dwFileAttributes = 0) then
begin
dwFileAttributes := faArchive;
end;
end;
strCopy(cFileName, PChar(aFileName));
// Size
if ((dwFlags and FD_FILESIZE) <> 0) then
begin
nFileSizeLow := sizes[j-1];
nFileSizeHigh := 0; // Limit to files of size MaxInt
end;
end; // with
// Put the file descriptor on a temp string
SetLength(aString, sizeOf(TFileDescriptor));
System.Move(aFd, aString[1], sizeOf(TFileDescriptor));
// And add that string to the result
result := result + aString;
end; // for
end; // with
end;
procedure TForm1.Panel1MouseDown(Sender: TObject; Button: TMouseButton;
Shift: TShiftState; X, Y: Integer);
var
j: integer;
begin
// Detect a drag
if uoDragDetect(Panel1.Handle, POINT(X,Y), UOTextSource1.MouseButton) then
begin
with UOTextSource1, CustomFormatData do
begin
// Always clear to prevent formats accumulating between drags.
Clear;
// A file group descriptor, so we'll find out about the file
// names dropped. Use a blank string so we'll get asked for these
// at drop-time.
AddFormat('FileGroupDescriptor', '');
// The file contents for each file we might be asked to fill in. Use
// a blank string for each so we'll get asked at drop time.
for j := 1 to UpDown1.Max do
begin
AddFormatEx('FileContents', '', TYMED_HGLOBAL, j-1);
// Make sure we don't get a trailing null.
// Items[Count-1] is the TCustomFormatData we just added.
Items[Count-1].AllowTrailingNull := false;
end;
// Finally, start the drag
Execute;
end;
end;
end;
procedure TForm1.UOTextSource1RenderCustomFormat(Sender: TObject;
const formatName: String; var formatContent: String);
// Delay render handler. Any formats we didn't supply at drag-time will be
// requested here. You don't have to do it this way, but it's handy for resource
// management, in the case where you need to supply a lot of formats but the
// user will be accepting only a small subset of them.
var
aCDF: TCustomFormatData;
aSL: TStringList;
nFiles: integer;
j: integer;
sizes: array of integer;
begin
// We get called here at drop-time to provide the
// content for each format we didn't specify at drag-time.
if (AnsiCompareText(formatName, 'FileGroupDescriptor') = 0) then
begin
// File group descriptor. We'll pass however many file names we were asked
// for in the UI
nFiles := UpDown1.Position;
SetLength(Sizes, nFiles);
aSL := TStringList.Create;
try
for j := 1 to nFiles do // Iterate
begin
// Get a content size from the same function that will later create the
// content (or a shortcut, in the general case)
sizes[j-1] := Length(GetContentsForFileIndex(j));
// Get a file name for each. If the content is going to be zero, blank out
// the name, which will prevent the file being created.
if (sizes[j-1] <> 0) then
aSL.Add(Format('File%d.txt', [j]))
else
aSL.Add('');
end; // for
// Use the extended function to supply sizes.
formatContent := uoFileGroupDescriptorFromFileListEx('', aSL, sizes);
finally
aSL.Free;
end;
end;
if (AnsiCompareText(formatName, 'FileContents') = 0) then
begin
// File contents. Since we passed nFiles file names above, we'll get called
// once for each of the nFiles indices 0..nFiles-1.
// Get the TCustomFormatData object that was last requested
aCDF := UOTextSource1.CustomFormatData[UOTextSource1.CustomFormatIndex];
// Depending on the index, return the content.
formatContent := GetContentsForFileIndex(aCDF.lIndex+1);
end;
end;
procedure TForm1.UOTextTarget1Drop(Sender: TObject; Acceptor: TWinControl;
const dropText: String; X, Y: Integer);
// On drop, put the file names and content into a TListView. In a real application,
// of course, you'd create the files.
var
aString: string;
j: integer;
aSL: TStringList;
begin
// Clear the list view
ListView1.Items.Clear;
// Get the file group descriptor information
aString := UOTextTarget1.DataObjectGetFormat('FileGroupDescriptor');
aSL := uoFileListFromFileGroupDescriptor(aString);
// Now, loop over the files, looking for content
try
for j := 1 to aSL.Count do
begin
// Tell the target which index we're looking for
DataObjectlIndex := j-1;
// Get the content
aString := UOTextTarget1.DataObjectGetFormat('FileContents');
// Add a new item to the list view, and fill in the name and contents
with ListView1.Items.Add do
begin
Caption := aSL[j-1];
SubItems.Add(aString);
//SubItems.Add(IntToStr(length(aString)));
end;
end;
finally
aSL.Free;
end;
end;
procedure TForm1.FormCreate(Sender: TObject);
begin
// Tell the text target we're looking for these formats
with UOTextTarget1, CustomFormats do
begin
Add('FileGroupDescriptor');
Add('FileContents');
end; // with
end;
end.
Back to top
|

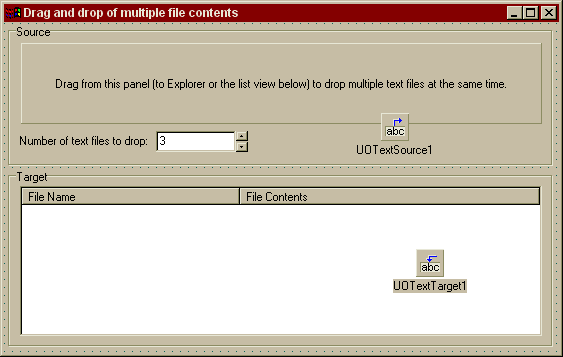

| Form source: fmFileContentsTest2.dfm |
object Form1: TForm1
Left = 192
Top = 110
BorderStyle = bsDialog
Caption = 'Drag and drop of multiple file contents'
ClientHeight = 330
ClientWidth = 555
Color = clBtnFace
Font.Charset = DEFAULT_CHARSET
Font.Color = clWindowText
Font.Height = -11
Font.Name = 'MS Sans Serif'
Font.Style = []
OldCreateOrder = False
OnCreate = FormCreate
PixelsPerInch = 96
TextHeight = 13
object GroupBox1: TGroupBox
Left = 4
Top = 2
Width = 545
Height = 141
Caption = 'Source'
TabOrder = 0
object Label1: TLabel
Left = 11
Top = 109
Width = 135
Height = 13
Caption = 'Number of text files to drop: '
end
object Panel1: TPanel
Left = 13
Top = 18
Width = 521
Height = 81
BorderWidth = 3
Caption =
'Drag from this panel (to Explorer or the list view below) to dro' +
'p multiple text files at the same time.'
TabOrder = 0
OnMouseDown = Panel1MouseDown
end
object Edit1: TEdit
Left = 148
Top = 106
Width = 80
Height = 21
TabOrder = 1
Text = '3'
end
object UpDown1: TUpDown
Left = 228
Top = 106
Width = 12
Height = 21
Associate = Edit1
Min = 1
Max = 10
Position = 3
TabOrder = 2
Wrap = False
end
end
object GroupBox2: TGroupBox
Left = 4
Top = 147
Width = 545
Height = 177
Caption = 'Target'
TabOrder = 1
object ListView1: TListView
Left = 12
Top = 16
Width = 522
Height = 150
Columns = <
item
AutoSize = True
Caption = 'File Name'
end
item
Caption = 'File Contents'
Width = 300
end>
TabOrder = 0
ViewStyle = vsReport
end
end
object UOTextSource1: TUOTextSource
OnRenderCustomFormat = UOTextSource1RenderCustomFormat
DropEffects = [deCopy]
MouseButton = mbLeft
Left = 377
Top = 90
end
object UOTextTarget1: TUOTextTarget
AcceptorControl = ListView1
AcceptTextFormats = [dtfCustom]
OnDrop = UOTextTarget1Drop
Left = 412
Top = 226
end
end
Back to top
|
