Project source: DelayRenderDIBTest.dpr |
program DelayRenderDIBTest; {Example application for UnitOOPS OLE Drag and Drop Components} uses Forms, fmDelayRenderDIBTest in 'fmDelayRenderDIBTest.pas' {Form1}; {$R *.RES} begin Application.Initialize; Application.CreateForm(TForm1, Form1); Application.Run; end.Back to top |
Form source: fmDelayRenderDIBTest.pas |
unit fmDelayRenderDIBTest; { Example for UnitOOPS OLE Drag and Drop Components. Demonstrates how to drag a bitmap in DIB format, and only have the data rendered at drop-time (when it's actually needed) to avoid large memory allocations until needed. Last modified: 11/10/99 } interface uses Windows, Messages, SysUtils, Classes, Graphics, Controls, Forms, Dialogs, StdCtrls, ExtCtrls, uoole; type TForm1 = class(TForm) Label1: TLabel; Panel1: TPanel; Image1: TImage; UOTextSource1: TUOTextSource; procedure Image1MouseDown(Sender: TObject; Button: TMouseButton; Shift: TShiftState; X, Y: Integer); procedure UOTextSource1RenderCustomFormat(Sender: TObject; const formatName: String; var formatContent: String); private { Private declarations } public { Public declarations } end; var Form1: TForm1; implementation {$R *.DFM} procedure TForm1.Image1MouseDown(Sender: TObject; Button: TMouseButton; Shift: TShiftState; X, Y: Integer); // OnMouseDown - detect the drag. begin if DragDetect(Panel1.Handle, POINT(X,Y)) then begin // We have a drag. with UOTextSource1, CustomFormatData do begin // Clear out the custom format list, Clear; // Advertise that we can supply DIB's, but send no data. // At drop time we'll be asked for this in OnRenderCustomFormat AddFormat(IntToStr(CF_DIB), ''); // Do the drag Execute; end; // with end; end; procedure TForm1.UOTextSource1RenderCustomFormat(Sender: TObject; const formatName: String; var formatContent: String); // We've been asked to render the custom format formatName. // We may get called multiple times here. var aMS: TStringStream; begin // Have we been asked for DIB? if (formatName = IntToStr(CF_DIB)) then begin // Use a TStringStream to get the data on a string easily aMS := TStringStream.create(''); try // Put the bitmap from our TImage on the stream Image1.Picture.Bitmap.SaveToStream(aMS); // Grab the contents as a string formatContent := aMS.DataString; // Remove the file header to get a standalone DIB Delete(formatContent, 1, sizeOf(TBitmapFileHeader)); finally // wrap up aMS.free; end; // try/finally end; end; end.Back to top |
Form source: fmDelayRenderDIBTest.dfm |

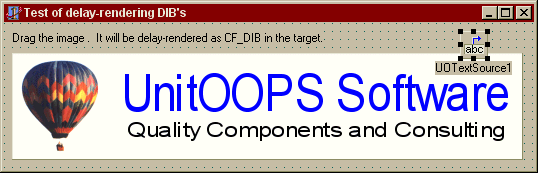

object Form1: TForm1 Left = 192 Top = 194 Width = 538 Height = 173 Caption = 'Test of delay-rendering DIB'#39's' Color = clBtnFace Font.Charset = DEFAULT_CHARSET Font.Color = clWindowText Font.Height = -11 Font.Name = 'MS Sans Serif' Font.Style = [] OldCreateOrder = False PixelsPerInch = 96 TextHeight = 13 object Label1: TLabel Left = 8 Top = 8 Width = 311 Height = 13 Caption = 'Drag the image . It will be delay-rendered as CF_DIB in the tar' + 'get.' end object Panel1: TPanel Left = 8 Top = 30 Width = 511 Height = 107 AutoSize = True Caption = 'Panel1' TabOrder = 0 object Image1: TImage Left = 1 Top = 1 Width = 509 Height = 105 AutoSize = True Picture.Data = { 07544269746D6170EE720200424DEE720200000000003600000028000000FD01 0000690000000100180000000000B87202000000000000000000000000000000 0000F7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFF F7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FF FFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7 FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFF ...omitted for brevity... F7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FF FFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7 FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFF F7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FF FFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFFF7FFFF00} OnMouseDown = Image1MouseDown end end object UOTextSource1: TUOTextSource OnRenderCustomFormat = UOTextSource1RenderCustomFormat DropEffects = [deCopy] MouseButton = mbLeft Left = 456 Top = 8 end endBack to top |
